Define Field Parameters

Find desired table and business object (See Finding a Business Object and Table for a Field)
Click Properties tab.
Click on Properties/Columns group box. A new row is added to Properties/Columns grid.
Enter a name, without spaces between multiple words, for business object property in Property Name.
Click in Type column and select from description.

Under DB Column Name, type name of database tab in capital letters with an underscore(_) character separating each word.

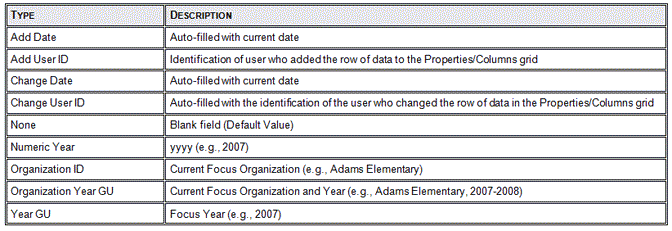

Click in Special Type column and select from description, if appropriate.

Enter maximum number of characters allowed in Max Length.
Click to save information or click to cancel operation without saving information.
Click anywhere on appropriate record to highlight.
Click .
Check Mandatory to require mandatory data entry by user.
Click Lookup Display and select from descriptions, if field will contain lookup table.
Enter Default Value if lookup table is to display a default value in field on tab or view. Otherwise, leave blank.
Check Read Only if value is to be read-only.
Enter number of characters to display in Display Length.
Click Lookup Sort and select from descriptions.
Click to save information or click to cancel operation without saving information.
Click Value List tab.
Click on Value List group box.
Type Order of value to display in drop-down menu.
Enter Code to be associated with description.
Type Description of value.
Repeat Steps to add additional menu values.
Click on Action Bar to save or click to cancel operation without saving.
Click .
Click Basic Info tab.
Click . This will
Click
- synchronize new business object, table, and field information with database, and
- update Last Synch Date Time and Last Changed Date Time.

Synergy SIS>System>Data and Views>User Defined Data>Basic Info tab
